VB.NET Code Generation Tool
By Adam D. Kiger.

An article outlining a Code Generation Tool that will help VB.NET developers
reach their deadlines faster and get home to their wives!
VB.NET
Windows, .NET
Win32, VS
Dev
Posted: 28 Dec 2006
Updated: 13 Feb 2007
Views: 29,363
Note: This is an unedited reader contribution Get Article's HTML | Modify | Delete
Announcements


Search
Advanced Search
Sitemap | Add to IE Search
Print Broken Article? Bookmark Discuss Send to a friend
15 votes for this article.
Popularity: 4.58. Rating: 4.14 out of 5.

Note: This is an unedited contribution. If this article is inappropriate, needs attention or copies someone else's work without reference then please Report this article.

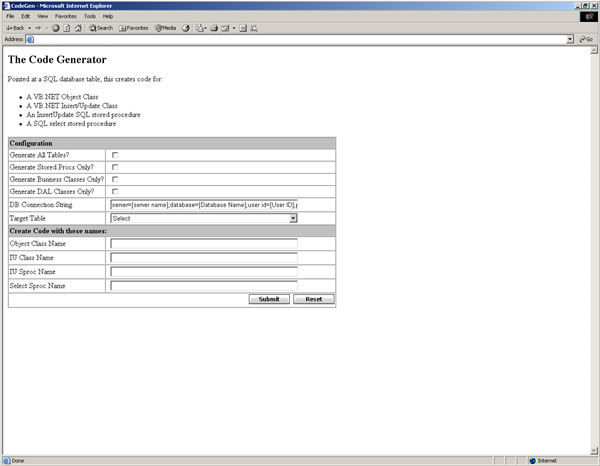

Code Generator Screen Shot

Introduction

6 years ago I began writing a tool to generate business classes, data access layer classes, insert/update/get stored procedures. I got so tired of writing the same code over and over again. As a developer I can personally tell you that this is a common complaint among developers. Through the years I stuck to what worked easily and quickly since as a developer I'm constantly surrounded by impossible deadlines and the need for the reuse of successfully tested functionality which is crucial. As time passed I realized a similarity in the business classes, data access layer classes, insert/update/get stored procedures I was writing. As soon as portions of code in these categories passed various and rigorous testing from my wonderful friends in Quality & Assurance, I took the code and began looking for a way to speed up my development process.

The Code Generation Tool will allow the user to point to any SQL Server 2000 Database and generate code on a per table basis or generate code on all the tables in that database. The code generated will consist of an Insert/Update stored procedure, a dynamic Get stored procedure, a Business Class with two functions(A save() function, allowing me to call the Insert/Update stored procedure the tool created and a load() function, allowing me to pass a single or multiple parameters to the Get stored procedure the tool created retrieving a recordset based on the criteria passed) and a Data Access Layer Class called by the save() function of the business class which in turn calls the Insert/Update stored procedure the tool created allowing me to insert if the record ID is not present or update based on the ID i have provided. If the information passed was intended for insertion, then the process will also return the new record ID.

Using the code

Files that I will be talking about in this article and also included in the CodeGeneration/CodeGeneration_src.zip are:

  1. Web.config
  2. Classes.vb
  3. IU.vb
  4. Funcs.vb
  5. CodeGen.aspx/CodeGen.aspx.vb
  6. TestOutput.aspx/TestOutput.aspx.vb

Set Up

Before I begin it is important that you set up an example table in a SQL Server 2000 Database. You can use the script below or the DBSetup.sql provided in the CodeGeneration/CodeGeneration_src.zip or CodeGeneration/CodeGeneration_demo.zip downloads.

CREATE TABLE [dbo].[tbl_Name] (
[ID] [int] IDENTITY (1, 1) NOT NULL ,
[FirstName] [varchar] (50) COLLATE SQL_Latin1_General_CP1_CI_AS NULL ,
[LastName] [varchar] (50) COLLATE SQL_Latin1_General_CP1_CI_AS NULL
) ON [PRIMARY]
GO

SET IDENTITY_INSERT [dbo].[tbl_Name] ON
INSERT tbl_Name(ID,FirstName,LastName) VALUES('1','adam','kiger')
INSERT tbl_Name(ID,FirstName,LastName) VALUES('2','john','galloway')
INSERT tbl_Name(ID,FirstName,LastName) VALUES('3','peter','Pociask')

The Code Generation Tool works completely off your table(s) in your Database. This was a critical and important feature for me because by running the generation off the column names per table I was able to keep variable naming consistancy all the way through to the front-end of my application.

1. Web.config

Make sure in your web.config you add the following(it's assumed that the database your application is using will be the same as what you are generating code for. This tool will allow you to point at any SQL Server 2000 Database and is application independent):

appSettings
    add key="AppConnectionString"
value="server=[server name];database=[Database Name];user id=[User ID];pwd=[Password]"
/appSettings

2. Classes

This file is where I keep my generated business classes: This is where I will later call in an example the save() and the load() functions. Here is an example of the generated class and the generated dynamic Get stored procedure the load() function calls on:

Public Class tbl_Name
        Public ID As String
        Public FirstName As String
        Public LastName As String

        Public Function save() As Integer
            Dim output As Integer
            Dim generic As New IU_Database.IU_tbl_Name
            With generic
                .ID = ID
                .FirstName = FirstName
                .LastName = LastName
            End With
            generic.ExecuteProc()
            output = generic.RetVal
            Return output
            generic = Nothing
        End Function

        Public Function load()
            Dim sqlConn As New SqlConnection(ConfigurationSettings.AppSettings("AppConnectionString"))
            Dim sqlCmd As New SqlClient.SqlCommand("[prc_Get_tbl_Name]", sqlConn)
            With sqlCmd
                .CommandType = CommandType.StoredProcedure
                .Parameters.Add(New SqlClient.SqlParameter("@ID",
 SqlDbType.Int)).Value = ID
                .Parameters.Add(New SqlClient.SqlParameter("@FirstName",
 SqlDbType.VarChar, 50)).Value = FirstName
                .Parameters.Add(New SqlClient.SqlParameter("@LastName",
 SqlDbType.VarChar, 50)).Value = LastName
            End With
            Dim DataReader As SqlDataReader
            Try
                sqlCmd.Connection.Open()
                DataReader = sqlCmd.ExecuteReader()
                Do While DataReader.Read()
                    If Not IsDBNull(DataReader.Item("ID")) Then
                        ID = DataReader.Item("ID")
                    End If
                    If Not IsDBNull(DataReader.Item("FirstName")) Then
                        FirstName = DataReader.Item("FirstName")
                    End If
                    If Not IsDBNull(DataReader.Item("LastName")) Then
                        LastName = DataReader.Item("LastName")
                    End If
                Loop
            Catch ex As System.Exception
                Throw New System.Exception(ex.ToString())
            Finally
                If sqlConn.State = Data.ConnectionState.Open Then
                    sqlConn.Close()
                End If
            End Try
        End Function

    End Class

I'm sure at some point someone is going to cut this stored procedure down to size, but I have yet to run into a resource problem, even with over 5,000 concurrent sessions.

CREATE PROCEDURE prc_Get_tbl_Name
@ID AS int = NULL,
@FirstName AS varchar(50) = NULL,
@LastName AS varchar(50) = NULL
AS
Declare @WhereClause as varchar(8000)
SELECT @WhereClause = 'SELECT * FROM tbl_Name WHERE 1 = 1 '
if DataLength(@ID) > 0 SELECT @WhereClause = @WhereClause + ' AND '

SELECT @WhereClause = case @ID when isnull(@ID,'') then @WhereClause + ' ID

 = ' + CONVERT(varchar,@ID) else @WhereClause end

if DataLength(@FirstName) > 0 SELECT @WhereClause = @WhereClause + ' AND '


SELECT @WhereClause = case @FirstName when isnull(@FirstName,'') then @WhereClause + '
FirstName = ' + CONVERT(varchar,@FirstName) else @WhereClause end

if DataLength(@LastName) > 0 SELECT @WhereClause = @WhereClause + ' AND '


SELECT @WhereClause = case @LastName when isnull(@LastName,'') then @WhereClause + '
LastName = ' + CONVERT(varchar,@LastName) else @WhereClause
 end

exec(@WhereClause)
GO

3. IU

This file is where I keep my generated data access layer classes: When I call the save() function in the generated business class, this class is called. Here is an example of the generated data access layer class and the generated Insert/Update stored procedure it references:

Public NotInheritable Class IU_tbl_Name
        Public RetVal As String
        Public ID As String
        Public FirstName As String
        Public LastName As String
        Public Function ExecuteProc()
            Dim sqlConn As New SqlConnection(ConfigurationSettings.AppSettings("AppConnectionString"))
            Dim sqlCmd As New SqlClient.SqlCommand("[prc_IU_tbl_Name]", sqlConn)
            Dim output_value As SqlParameter
            With sqlCmd
                .CommandType = CommandType.StoredProcedure
                output_value = .Parameters.Add(New SqlClient.SqlParameter
("@RetVal", SqlDbType.Int))
                output_value.Direction = ParameterDirection.Output
                .Parameters.Add(New SqlClient.SqlParameter("@ID",
 SqlDbType.int)).Value = ID
                .Parameters.Add(New SqlClient.SqlParameter("@FirstName",
 SqlDbType.varchar, 50)).Value = FirstName
                .Parameters.Add(New SqlClient.SqlParameter("@LastName",
 SqlDbType.varchar, 50)).Value = LastName
            End With
            Try
                sqlCmd.Connection.Open()
                sqlCmd.ExecuteReader()
            Catch ex As System.Exception
                Throw New System.Exception(ex.ToString())
            Finally
                If IsDBNull(output_value.Value) Then
                    RetVal = ID
                Else
                    RetVal = output_value.Value
                End If
                If sqlConn.State = Data.ConnectionState.Open Then
                    sqlConn.Close()
                End If
            End Try
        End Function
    End Class

CREATE PROCEDURE prc_IU_tbl_Name
@ID AS int = NULL,
@FirstName AS varchar(50) = NULL,
@LastName AS varchar(50) = NULL,
@RetVal int OUTPUT
AS
SET NOCOUNT ON
IF EXISTS(SELECT * FROM tbl_Name WHERE ID = @ID)
BEGIN
UPDATE tbl_Name
Set FirstName = isNull(@FirstName, FirstName),LastName = isNull(@LastName, LastName)
WHERE ID = @ID
Return (0)
End
ELSE
BEGIN
INSERT INTO tbl_Name
(FirstName, LastName)
VALUES (IsNull(@FirstName, ''), IsNull(@LastName, ''))
SET @RetVal = @@IDENTITY
End
GO


4. Funcs

The function LoadFromAnyDDLB() below is referenced by the CodeGen application to create a dropdownlist of all the table names contained in the database you pointed the application at. I've used this function for many years to fill my dropdownlists. (Thanks John Galloway & Peter Pociask!)

Public Function LoadFromAnyDDLB(ByVal vddl As DropDownList,
ByVal AppConnectionString As String,
ByVal strSQL As String,
ByVal sDefault As String,
ByVal sValue As String,
ByVal sText As String)
        'vddl = DropDownListBox Ojbect
        'AppConnectionString = connection string to my DB
        'strSQL = pre-built sql to fill listbox
        'sDefault = Value of item selected by default
        'sValue = Column from result set used for the value field in listbox
        'sText = Column from result set used for the display field in listbox

        Dim sqlCmd As New SqlCommand
        Dim sqlConn As New SqlConnection

        sqlConn.ConnectionString = AppConnectionString
        sqlCmd = New SqlClient.SqlCommand(strSQL, sqlConn)
        sqlCmd.Connection.Open()


        Dim dReader As SqlDataReader
        dReader = sqlCmd.ExecuteReader

        Dim defaultItem As New System.Web.UI.WebControls.ListItem
        defaultItem.Value = ""
        defaultItem.Text = "Select"

        With vddl
            .DataSource = dReader
            .DataValueField = sValue
            .DataTextField = sText
            If sText = "calDate" Then
                .DataTextFormatString = "{0:d}"
            End If
            If sText = "intervalDesc" Then
                .DataTextFormatString = "{0:t}"
            End If
            .DataBind()
            .Items.Insert(0, defaultItem)
            CType(.DataSource, SqlDataReader).Close()
            If .Items.Count = 0 Then
                .BackColor = System.Drawing.Color.LightGray
                .Enabled = False
            End If

            Dim x As Integer
            For x = 1 To (.Items.Count - 1)
                If .Items(x).Value = sDefault Then
                    .Items(x).Selected = True
                End If
            Next

        End With

        Return vddl
        sqlConn.Close()
        sqlConn.Dispose()
    End Function

5. CodeGen

The UI for the Code Generation Tool contains the following:

  1. Generate All Tables? = checkbox to determine if I want to run the code generation on all tables in the DB or just run against one table at a time
  2. Generate Stored Procs Only? = checkbox to determine if I just want to run code generated stored procedures only
  3. Generate Business Classes Only? = checkbox to determine if I just want to run code generated business classes
  4. Generate DAL Classes Only? = checkbox to determine if I just want to run code generated data access layer classes
  5. DB Connection String = textbox to edit or add my database connection string
  6. Target Table = dropdownlist to select an individual table to generate code against
  7. Object Class Name = textbox to edit or add my business class name
  8. IU Class Name = textbox to edit or add my data access layer class name
  9. IU Sproc Name = textbox to edit or add my Insert/Update stored procedure name
  10. Select Sproc Name = textbox to edit or add my Dynamic Get stored procedure name
  11. Submit Button = run the application
  12. Reset Button = resets the application

In the code behind of CodeGen.aspx I have preset the following variable values to match my naming conventions. Of course you can edit these values to match your needs.
TableName = "dbo.tbl_Name"
ClassNameHere = "tbl_Name"
StoredProcName = "prc_IU_tbl_Name"
IU2Use = "IU_tbl_Name"
LoadStoredProcName = "prc_Get_tbl_Name"

I added this value so I wouldn't have to fully build the connection string everytime I ran the application.
txt_ConStr.Text = "server=[server name];database=[Database Name];user id=[User ID];pwd=[Password]"

The dropdownlist on the page drp_targetTable is used to populate all the table names in the database you have pointed the application at. This will allow you to select an individual table to generate code towards. The dropdownlist drp_targetTable is wrapped in a function called LoadFromAnyDDLB which is located in your Funcs.vb file above.

strSQL = "SELECT INFORMATION_SCHEMA.TABLES.TABLE_NAME AS TableName "
strSQL += "                FROM dbo.sysobjects INNER JOIN  "
strSQL += "INFORMATION_SCHEMA.TABLES ON dbo.sysobjects.name =  "
strSQL += "INFORMATION_SCHEMA.TABLES.TABLE_NAME  "
strSQL += "                WHERE ((TABLE_TYPE = 'BASE TABLE') AND  "
strSQL += "(INFORMATION_SCHEMA.TABLES.TABLE_NAME<>'dtproperties'))  "

Dim oFuncs As New Funcs
oFuncs.LoadFromAnyDDLB(drp_targetTable,
"server=[server name];database=[Database Name];user id=[User ID];pwd=[Password]",
strSQL, 0,
"TableName",
"TableName")
oFuncs = Nothing

The results literal on the page called ltl_CodeResults will be the placeholder the main code generation function (MakeClassesAndIUs) will write to. Depending on what choices you make in the UI concerning what classes or stored procedures you want to generate the Switch variable is used to pass those choices to the main code generation function (MakeClassesAndIUs).

ltl_CodeResults.Text = MakeClassesAndIUs(TableName,
ClassNameHere,
StoredProcName,
IU2Use,
LoadStoredProcName,
Switch)

6. TestOutput

Here comes the fun part! Below I will show you examples of how to work with the code you have just generated. As you will see, there is little code one has to write to deal with CRUDing of data in a dynamic web based application or public site.

My first example will show how to call the business class's load() function which in turn will call our Dynamic Get stored procedure and retrieve whatever data we are looking for. I can pass a single or multiple values to the Dynamic stored procedure.

  1. First I create a variable TestGet and point it at my Business Class
  2. Next I'll use a With statement associated to TestGet
  3. I'll assign FirstName a value of "'Adam'" (making sure to include single quotes for my stored procedure if the variable I'm assigning a value to is a varchar) and LastName a value of "'Kiger'"
  4. I'll envoke the load function of our business class
  5. Based on the criteria I've provided I'll call TestGet.ID and write out its value
  6. Close my object

I can also:

  1. First I create a variable TestGet1 and point it at my Business Class
  2. Next I'll use a With statement associated to TestGet1
  3. I'll assign ID a value of 1 (making sure to include single quotes for my stored procedure if the variable I'm assigning a value to is a varchar)
  4. I'll envoke the load function of our business class
  5. Based on the criteria I've provided I'll call TestGet1.LastName and write out its value
  6. Close my object
Dim TestGet As New Classes.tbl_Name
With TestGet
    .FirstName = "'Adam'"
    .LastName = "'Kiger'"
    .load()
End With

Response.Write("ID = " & TestGet.ID)
TestGet = Nothing

'********* OR ************'

Dim TestGet1 As New Classes.tbl_Name
With TestGet1
    .ID = 1
    .load()
End With

Response.Write("LastName = " & TestGet1.LastName)
TestGet1 = Nothing


My next example will show how to call the business class's save() function which in turn will call our Data Access Layer Class which will then call our Insert/Update stored procedure and insert a new record returning the inserted record ID.

  1. First I create a variable TestSaveInsert and point it at my Business Class
  2. Next I'll use a With statement associated to TestSaveInsert
  3. I'll assign FirstName a value of "'Barbara'" (making sure to include single quotes for my stored procedure if the variable I'm assigning a value to is a varchar) and LastName a value of "'Bush'"
  4. I'll envoke the save function of our business class by assigning it to a GenericID variable(if I didn't need the inserted record ID I would just envoke the save function in the With statment)
  5. Based on the criteria I've provided I'll call GenericID and write out its value
  6. Close my object
Dim TestSaveInsert As New Classes.tbl_Name
With TestSaveInsert
    .FirstName = "Barbara"
    .LastName = "Bush"
    '.save() 'without retrieving an ID of the new inserted record
End With

'retrieving an ID of the new inserted record
Dim GenericID As String = TestSaveInsert.save()
Response.Write("NewID is = " & GenericID)

TestSaveInsert = Nothing

My next example will show how to call the business class's save() function which in turn will call our Data Access Layer Class which will then call our Insert/Update stored procedure and update an exsisting record.

  1. First I create a variable TestSaveUpdate and point it at my Business Class
  2. Next I'll use a With statement associated to TestSaveUpdate
  3. In order to update a record you must pass a value to the ID variable in your table. I'll assign ID a value of 4
  4. I'll assign FirstName a value of "'George'" (making sure to include single quotes for my stored procedure if the variable I'm assigning a value to is a varchar) and LastName a value of "'Bush'"
  5. I'll envoke the save function of our business class by assigning it to a GenericID variable(if I didn't need the inserted record ID I would just envoke the save function in the With statment)
  6. Based on the criteria I've provided I'll call GenericID and write out its value
  7. Close my object
Dim TestSaveUpdate As New Classes.tbl_Name
With TestSaveInsert
    .ID = 4
    .FirstName = "George"
    .LastName = "Bush"
    .save()
End With

TestSaveUpdate = Nothing

Points of Interest

During this process I've noticed that almost 60% of my development time has been cut out because of using this tool! I hope this Code Generation Tool saves you time as well and gives you the opportunity to spend more time with your family.

History

12/28/2006 - Finally finished this monster! (Or until the development community tears it apart and I have to start from scratch...)

About Adam Kiger

Picture of Adam KigerI have been a full-cycle web developer/designer since 1996. I'm primarily working with companies interested in utilizing my Content Management Software(CMS) that I have spent the past 6 years developing which integrates a private labeling structure, B2C environments, multiple languages and a profound sense of SEO compliance. I have also built custom Blogging, Forums, web applications and custom webware for multiple clients.

Adam D. Kiger


Click here to view Adam D. Kiger's online profile.


Other popular VB.NET articles:

  • Writing Your Own GPS Applications: Part I
    What is it that GPS applications need to be good enough to use for in-car navigation? Also, how does the process of interpreting GPS data actually work? In this two-part series, I will cover both topics and give you the skills you need to write a commercial-grade GPS application.
  • Using PropertyGrid Part-I
    Explains about PropertyGrid and how to use, with detailed examples
  • Web Service Dispatcher
    A simple web service to manage other web services
  • A VS2005-like Interface
    Apply a theme that resembles VS2005 to the DockPanel Suite, using an Extender class.
[Top] You voted 5 for this article.


FAQ  Message score threshold    Search comments
  View    Per page
New Message Msgs 1 to 25 of 32 (Total: 32) (Refresh) First Prev Next
Subject  Author  Date
  http://gennit.com   Gary Brewer  20:24 4 Jun '07
  thanx you very much...   zyapiq  10:48 25 Mar '07
  Offensive By line com on get over it   tmacpherson  11:13 26 Feb '07
  Thanks :D   Alejandra Herrera  17:31 22 Jan '07
  Good job   dly555  22:21 21 Jan '07
  Re: Good job [modified]   Adam D. Kiger  23:08 21 Jan '07
  Re: Good job   dly555  1:59 23 Jan '07
  Offensive byline!   Talbott  11:20 9 Jan '07
  Re: Offensive byline!   Colin Angus Mackay  11:32 9 Jan '07
  Re: Offensive byline!   Adam D. Kiger  11:43 9 Jan '07
  Re: Offensive byline!   j45mw  0:13 30 Jan '07
  Re: Offensive byline!   scorpydude  17:56 11 Feb '07
  Re: Offensive byline!   AnthonyLondon  4:51 21 Feb '07
  Take a look at CodeSmith   bizcad  12:39 2 Jan '07
  Re: Take a look at CodeSmith   mike.griffin@entityspaces.net  12:50 2 Jan '07
  Re: Take a look at CodeSmith   haroldmaude  13:38 2 Jan '07
  Re: Take a look at CodeSmith   Danilo Mendez  23:31 8 Jan '07
  Get home to your wife/husband   GlimmerMan  10:53 2 Jan '07
  Re: Get home to your wife/husband   Albay  17:46 13 Feb '07
  Re: Get home to your wife/husband   BarryGSumpter  0:47 21 Feb '07
  exception handling   Zyxil  9:32 2 Jan '07
  Re: exception handling   Adam D. Kiger  9:38 2 Jan '07
  Re: exception handling   tbim  20:33 30 Jan '07
  Re: exception handling   Adam D. Kiger  0:12 31 Jan '07
  ORM products   Sylvain BLANCHARD  6:45 29 Dec '06
Last Visit: 0:11 Sunday 5th August, 2007 First Prev Next

General comment    News / Info    Question    Answer    Joke / Game    Admin message


Updated: 13 Feb 2007 Article content copyright Adam D. Kiger, 2006
everything else Copyright CodeProject, 1999-2007.
Web10 | Advertise on The Code Project | Privacy

The Ultimate Toolbox . ASP Alliance . Developer Fusion . Developersdex . DevGuru . Programmers Heaven . Planet Source Code . Tek-Tips Forums .
